***SOLD***1 Used Vector Freund Roller compactor TFC-220
Model: TFC-220
Capacity (KG/HR): 1kg - 30kg/hr
Roll Width Diameter (MM): 31 x 200
Roll Speed (RPM): 2 - 17
Max Roll Force (KN): 50.4
General Info:

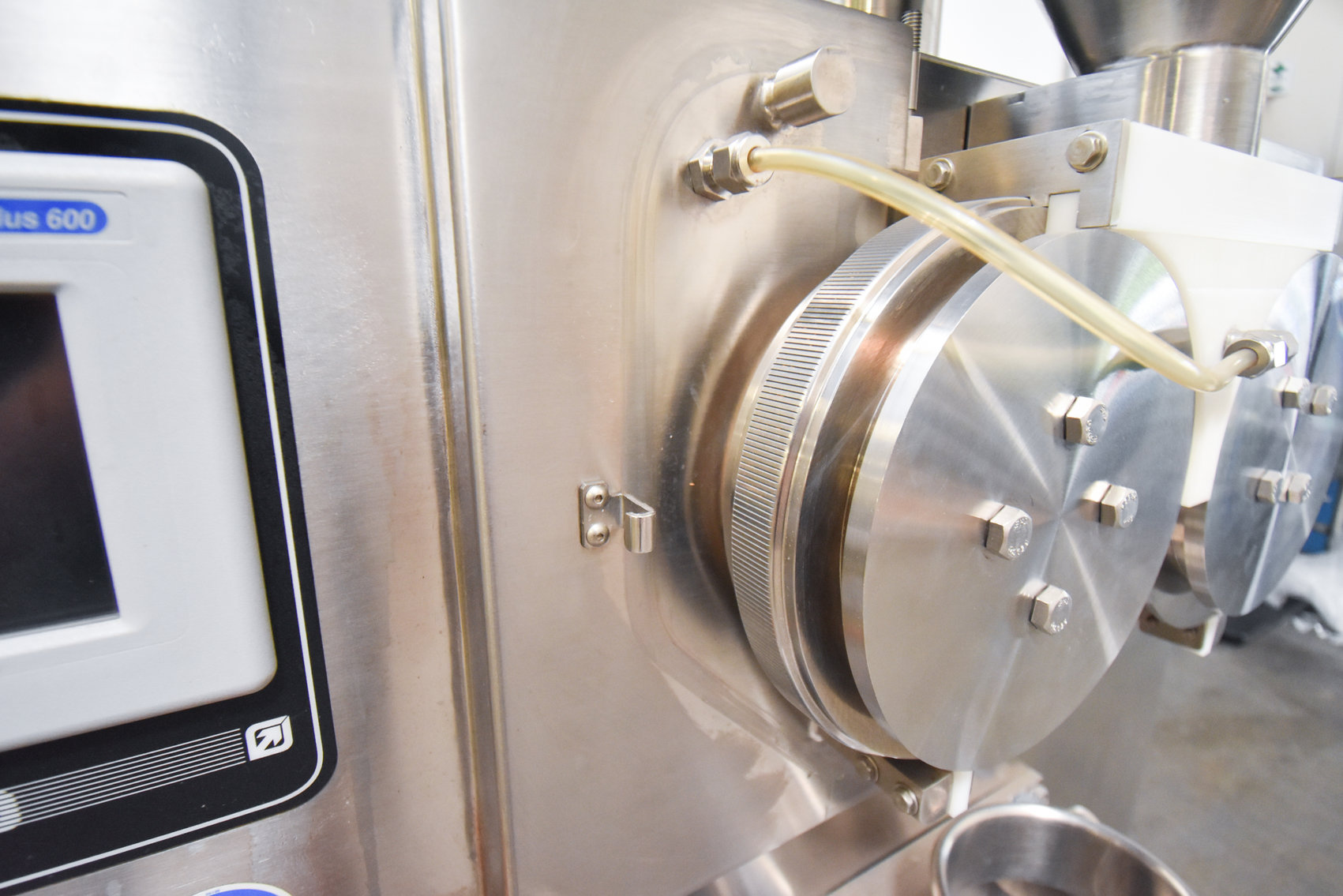

The Freund-Vector Pilot TFC Roll Compaction system is a versatile densification and dry granulation machine that produces uniform compacted sheets with consistent hardness and increased density by compacting powdered material between two uniquely designed rolls.
The TFC Roll Compaction system utilizes a cantilevered roll design and features a vertical tapered feed screw system with standard serrated rolls. Alternate rolls are available.
Simple-to-use, easy to clean, economical, and designed for maximum processing effectiveness, the TFC Roll Compaction family is the ideal solution for your current and future dry compaction processing requirements.
Features:
Processing Flexibility
Wide Production Capacity: 1kg to 30kg/hr
Capacity based on Lactose/Avicel Blend
No Additional Inserts Required
Rasping Star Mill Available
Optional Mills: Contact Freund-Vector
Engineered Scalability
Roll Gap Control via Hydraulic Pressure
Roll and Screw Design Consistent with Production Models
Unique Compaction Seal Design
Front Cover Air Seal
Contained Compaction Zone for Reducing Amount of Fines
Smart-Safe™ Containment Optional
5µg/m3 Containment – No Isolator
Higher Containment Levels with Isolator
Inline De-Aeration Design
Vertical Hopper and Screw De-Aerates Product Prior to Compaction
Optional Vacuum De-Aeration Available
Color Touchscreen Control System
Automatic (Recipe-Driven) and Manual Modes
COMPU Control System (Optional)
21 CFR Part 11 Data Recipe Handling System
Roll Gap Measurement Display
Amp and Watt Displays for Roll and Screw
Validatable Process Control
Roll Compaction Force
Roll and Screw Speeds
Optional Mill Speed
Quick Changeover Design
Cantilevered Roll for Easy Cleaning
Improved Head Lifting with Swingout Feature
Portable Self-Contained System
Electrical and Compressed Air Connections
Website: https://www.freund-vector.com/products/tfc-220/
Location: San Fernando, CA
