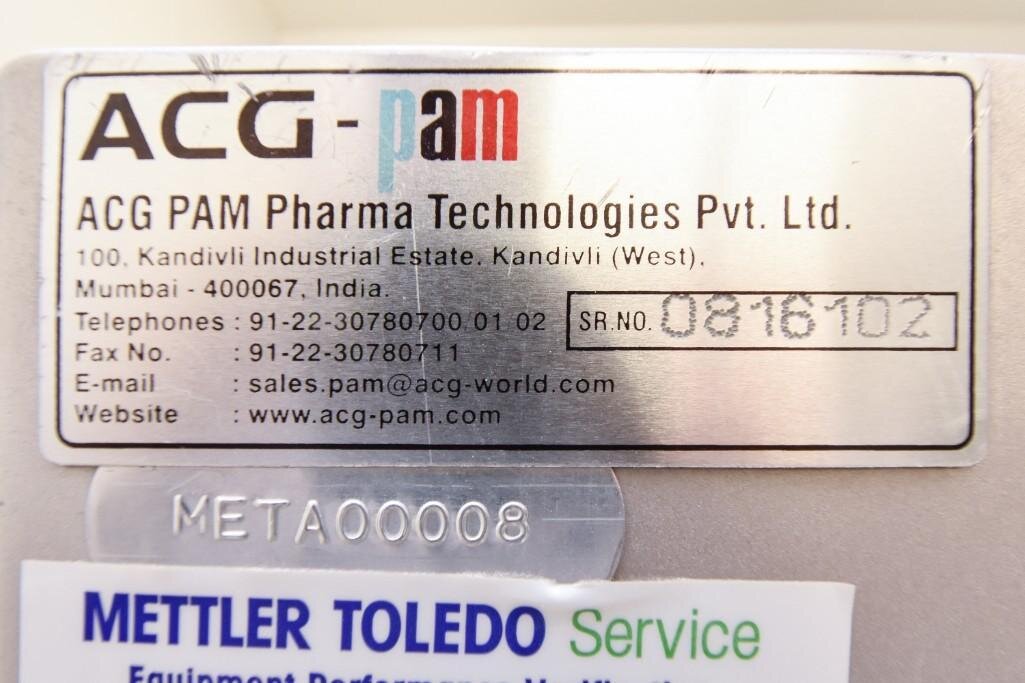

1- Used ACG Pam Legacy 6100 Tablet Press
Number of Punch Stations: 61
Punch Type: BB
Tool Specification: EU/TSM
Rated Output Per Hour: 366,000
First Stage Compression Force: 100
Second Stage Compression Force: 100
Pitch Circle Diameter: 540
Max Tablet Diameter: 13 MM
Max Filling Depth: 18MM
Max Tablet Thickness: 8.5
Upper Punch Penetration Depth: 1-6mm
Die Tablet Rotation Speed 15- 100 RPM
Die Diameter: 24MM
Die Height: 22.22MM
Punch Shaft Diameter: 19MM
Punch Length: 133.65MM
Weight of Machine 4500KG
Weight of Terminal: 100 KG
Weight of Electrical Switch Board: 200KG
Power Supply Details: 400 V 5%AC 3 Phase 13 KW
Dimensions of machine: 1400L x 1360W x 2100H MM
Dimensions of Terminal: 500L x 520W x 1500H MM
Electrical Switch Board Dimensions: 930L x 700W x 1800H MM
